XIFLON PFA SHEET is a semi-finished product manufactured from high-performance perfluoroalkoxy (PFA) resin, sourced from carefully selected and trusted suppliers including XIFLON fluoropolymer resin. Designed for the most demanding industries, our PFA sheets combine:

Chemical & UV Resistance

Withstand aggressive chemicals, solvents, and prolonged UV exposure

Thermal Stability

Continuous service temperature: −200 °C to +260 °C without degradation

Dielectric Properties

Superior insulation with high dielectric strength and low dissipation factor

Mechanical & Surface Performance

Excellent tensile strength, smooth finish, and non-stick surface

Experience Unmatched Performance in Extreme Conditions

Contact Us

How Our PFA Sheets Are Produced

Optimize Your Process With Precision-Engineered Performance

Contact Us

Our PFA sheets are manufactured using precision extrusion technology. During this process, prime grade PFA resin is melted and formed into sheets under tightly controlled temperature and pressure
conditions. This guarantees:

Dimensional Accuracy

Consistent thickness and flatness across large formats

Surface Quality

Ultra-smooth, defect-free finish free from inclusions or metal particles

Material Integrity

No degradation of polymer structure, preserving chemical and thermal resistance

Traceable Quality

Each batch is tested to ASTM standards to ensure reproducibility and reliability

CHARACTERISTIC PROPERTIES

Property Standard Unit Value
Specific gravity ASTM D792 – 2.12–2.17
Tensile Strength at Break ASTM D638 MPa ≥ 25
Elongation at Break ASTM D638 % ≥ 200
Hardness ASTM D2240 Shore D ≥ 60
Melting Point ASTM D3418 °C 300±10
Limiting Oxygen Index ASTM D2863 % > 95

PFA Sheet Dimensions & Tolerances

Thickness, mm Width, mm Length, mm Tolerance, mm
Thickness Width Length
2 1500 ≤ 2000 0 / +0.1 0 / +10 0 / +10
3
4
5 0 / +0.15
6
8
10 610 ≤ 1000 0 / +2 0 / +5 0 / +20
15
20
30
35
40
45
50
55
60
65
70
75
80

CUSTOM SIZES

are available upon request to meet specific application specifications. Length is supplied according to customer requirements.

PFA PRODUCTS FROM XIFLON

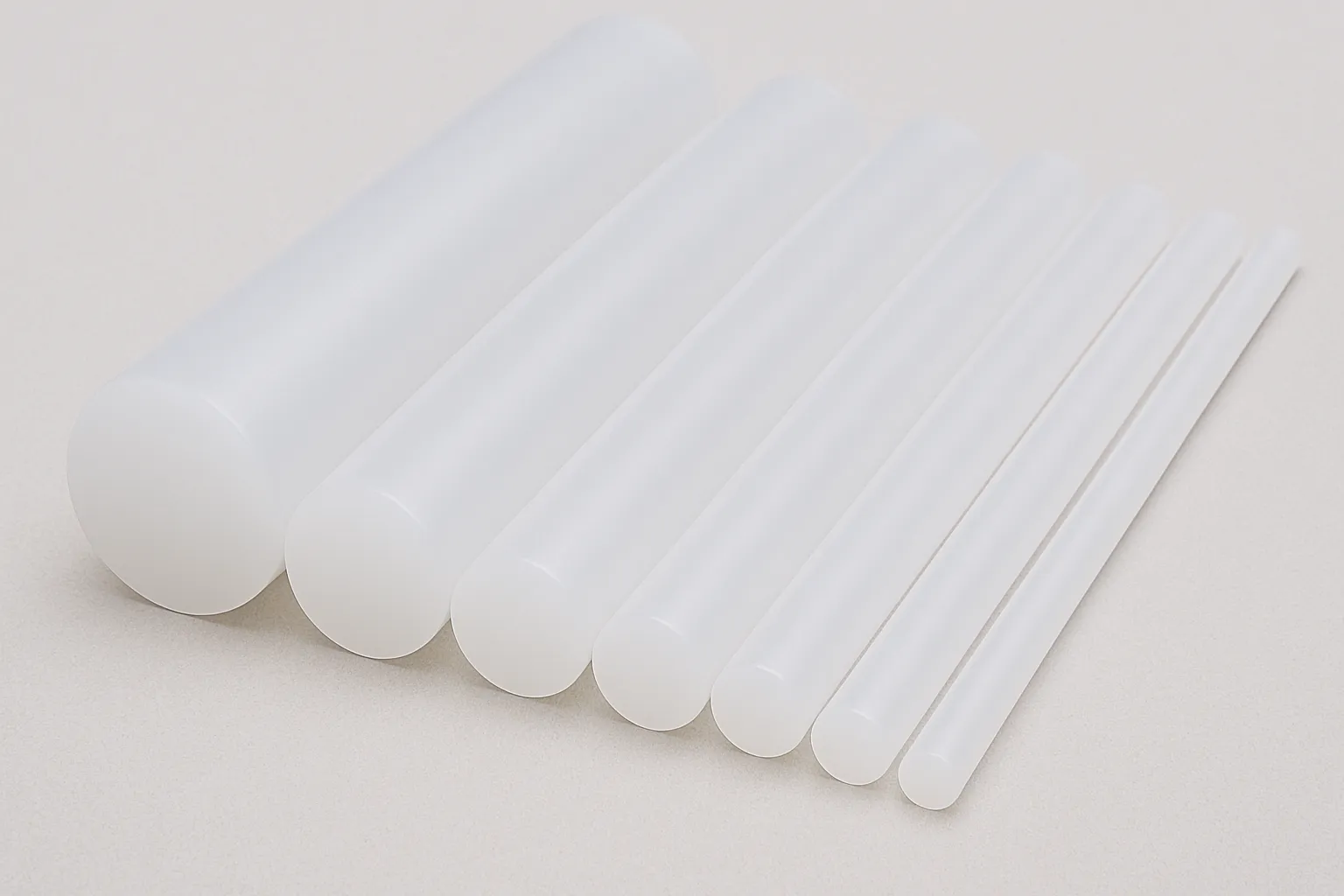

pfa rods
pfa rods

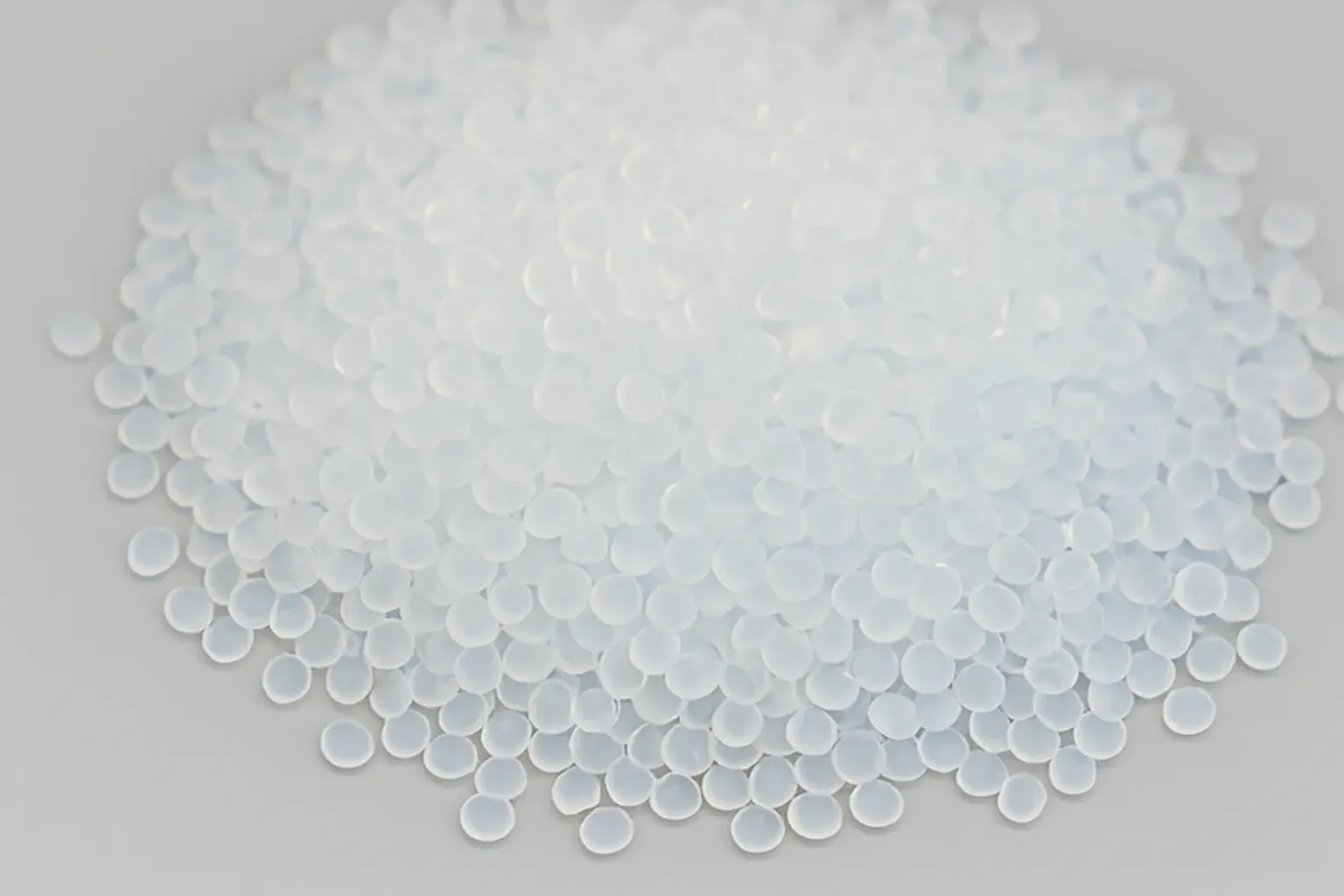

pfa resin
pfa Resin

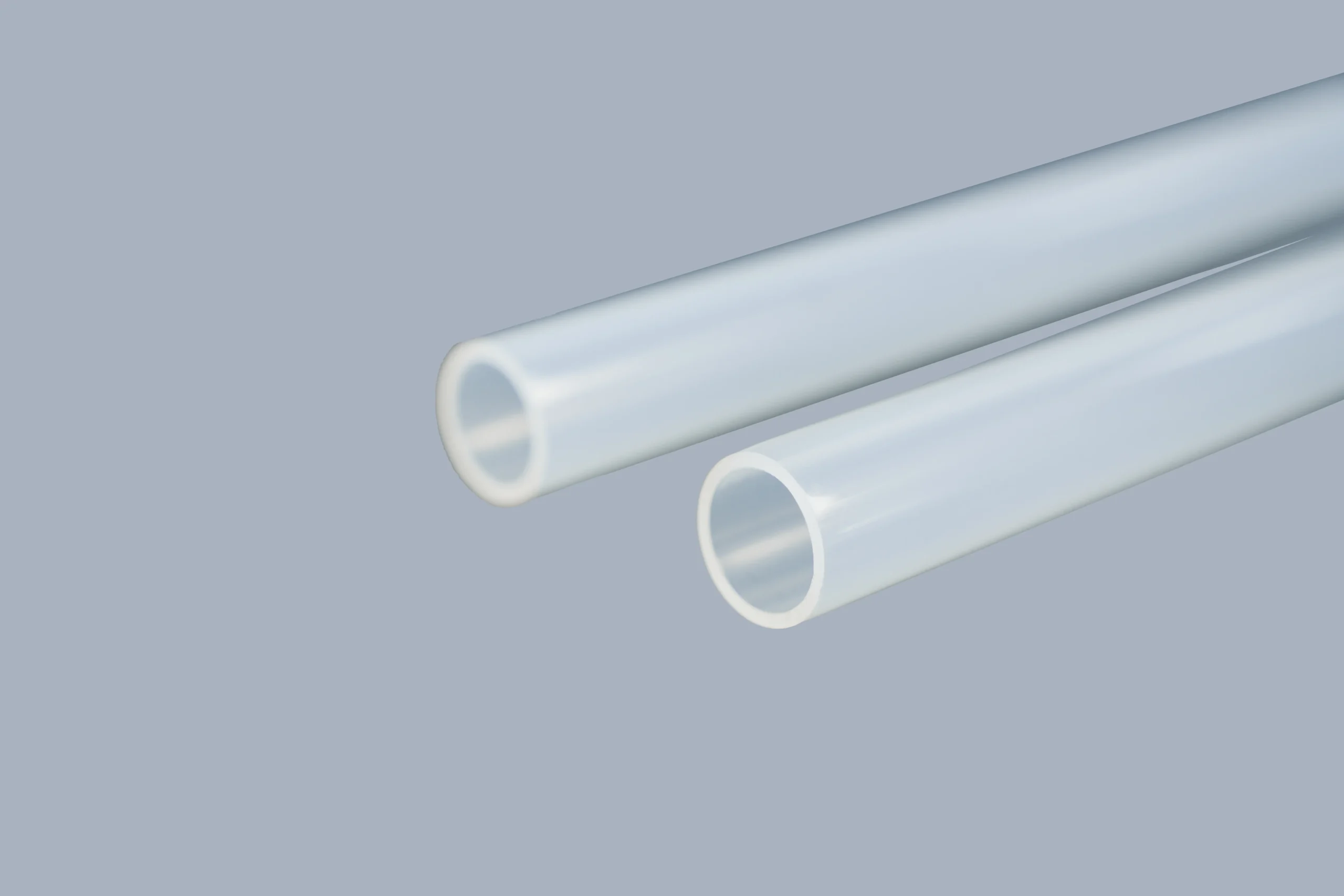

pfa-extrude-tubes-5-scaled
pfa tubes

Optimize Your Process with XIFLON PFA Sheets

This controlled extrusion process delivers semi-finished PFA sheets that can be precisely machined into critical components. With outstanding chemical resistance, thermal stability, and dielectric performance, XIFLON PFA sheets enable reliable solutions where conventional plastics fail.

  • Unlike standard engineering plastics, PFA retains its properties under extreme conditions – from −200 °C to +260 °C – ensuring long-term reliability in aggressive environments.
  • The combination of purity, smoothness, and mechanical integrity allows manufacturers to create high-performance parts with tight tolerances and consistent dimensional control.
  • Chemical

Applications: Seals and gaskets for pumps, valves, and process equipment

  • Pharmaceutical Industry

Applications: Seals and gaskets for pumps, valves, and process equipment

  • Electrical & Electronics

Applications: High-performance insulators and dielectric components

  • Industrial Processing

Applications: Linings for tanks, vessels, and piping exposed to corrosive media

  • Semiconductor& Cleanroom Environments

Applications: Precision-machined components requiring purity and smooth surface finishes

  • Food

Applications: Tank and vessel linings, seals and gaskets, machined components

Xiflon PFA SHEETS: Certified for Global Standards & Compliance

Xiflon PFA SHEETS are engineered to meet stringent global safety, environmental, and industry-specific standards. Our materials are tested and certified to ensure suitability across critical sectors, including chemical processing, automotive and other industry sectors.

Regulatory Compliance

✓ REACH – Free from SVHC > 0.1% (w/w), in accordance with Regulation (EC) No. 1907/2006
✓ RoHS – Compliant with Directive (EU) 2015/863
✓ FDA – Compliant with FDA regulations for use in food contact applications

Certification

Certification

ISO_9001-2015
1
reach-compliance
rohs
ASTM

WHY CHOOSE XIFLON PFA SHEETS ?

i

Key Advantages

Versatile Options

Available in a broad range of thicknesses, widths, and lengths, with custom sizes upon request to meet specific application needs.

High Quality

Extruded under strict quality controls, ensuring smooth, contamination-free surfaces and consistent purity.

High Performance

Outstanding chemical resistance, thermal stability (−200 °C to +260 °C), and dielectric strength, proven in demanding industries.

Expert Support

Multilingual technical support from selection to end-use applications.

Trusted Partner

Chosen by leaders in the semiconductor, chemical, food, pharmaceutical, and electrical sectors worldwide.

Need Assistance?

Our PFA experts are ready to help with your requirements.

Contact Our Team

Technical Resources

Access our comprehensive PFA size range guide and technical documentation.

Download Guide

PFA Extruded Sheets – FAQs

PFA extruded sheets are semi-finished products made from perfluoroalkoxy (PFA) resin, a melt-processable fluoropolymer closely related to PTFE. They are produced by melt extrusion, which allows for continuous, uniform sheet production.

Comparison with PTFE & FEP sheets:

  • PTFE sheets: Chemically similar, but non-melt processable (must be molded or skived). PFA offers the same chemical resistance but is extrudable, weldable, and thermoformable.
  • FEP sheets: Like PFA, FEP is extrudable, but PFA withstands higher service temperatures (~260 °C vs. 200 °C)and has better mechanical endurance.
  • PFA advantage: Combines PTFE’s chemical inertness with FEP’s processability — making it the most versatile fluoropolymer sheet.

Key properties of PFA extruded sheets:

  • Service temperature: up to 260 °C
  • Excellent chemical resistance (acids, bases, solvents)
  • Transparency and clarity, similar to FEP
  • Good mechanical strength and stress-crack resistance
  • Non-stick, low-friction surface

 In short: PFA sheets are the premium fluoropolymer solution where durability, chemical resistance, and fabrication flexibility are required.

PFA extruded sheets are available in multiple thicknesses, widths, and formats, from thin films to heavy plates.

Thickness range:

  • Ultra-thin films: 0.05 mm – 0.5 mm
  • Standard sheets: 1 mm – 10 mm
  • Heavy plates: Up to 15 mm+ on request

Widths & lengths:

  • Standard widths: 300 mm – 1200 mm
  • Continuous rolls: For thinner gauges (<2 mm)
  • Cut-to-size sheets: Supplied for thicker plates

Surface finish options:

  • Plain (smooth) → for general chemical/electrical use
  • Etched sheets → for adhesive bonding
  • Adhesive-backed sheets → for easy installation

 Whether you need ultra-thin flexible rolls or thick structural plates, PFA extrusion covers both ends of the spectrum.

PFA sheets are widely used where extreme chemical resistance, purity, and thermal stability are critical.

Industries & applications:

  • Semiconductors & electronics → Wafer processing trays, chemical baths, insulative panels (high-purity, chemical-resistant).
  • Chemical processing → Linings, gaskets, and protective barriers (resistant to strong acids & solvents).
  • Food & pharmaceuticals → FDA-compliant sheets for sterile, non-stick contact surfaces.
  • Aerospace & automotive → Lightweight heat-resistant panels, chemical barriers in fuel/hydraulic systems.
  • Solar & photovoltaics → Transparent UV-resistant protective sheets.

 Chosen where other plastics fail under chemical or temperature extremes, PFA sheets ensure reliability in high-demand industries.

PFA is one of the few fluoropolymers that can handle both extreme heat and harsh chemicals simultaneously.

Temperature resistance:

  • Continuous service up to 260 °C
  • Performs at cryogenic temps down to -200 °C

Chemical resistance:

  • Inert to nearly all industrial chemicals, acids, bases, and solvents
  • Resistant to stress cracking and permeation

Advantages over FEP:

  • FEP softens above ~200 °C, while PFA remains stable up to 260 °C
  • PFA has better long-term stress-crack resistance, ideal for high-pressure or aggressive conditions

Typical applications under harsh conditions:

  • Semiconductors → Ultrapure chemical baths
  • Pharmaceuticals → Sterile systems using strong cleaning agents
  • Aerospace → High-temperature insulation and protective linings

 For environments with both heat and chemical extremes, PFA sheets are the gold standard.

Unlike PTFE, PFA is melt-processable, making it much easier to fabricate.

Fabrication methods:

  • Thermoforming → Softens at ~300 °C for vacuum/pressure forming
  • Welding → Heat-sealed or butt-welded for tanks, liners, and panels
  • Machining → Cut, drilled, and milled with standard plastic tools
  • Bonding → Etched sheets can be adhered with specialty adhesives

Customization options:

  • Etched / adhesive-backed sheets for bonding
  • Colored sheets for industry-specific coding
  • Embossed/patterned sheets for slip-resistant or decorative finishes

Common fabricated applications:

  • Chemical tanks & piping systems → corrosion-resistant construction
  • Food processing → Non-stick trays, hygienic liners
  • Semiconductors → Cleanroom panels and ultrapure baths

 PFA sheets combine premium durability with fabrication versatility — making them the most adaptable fluoropolymer sheets available.
